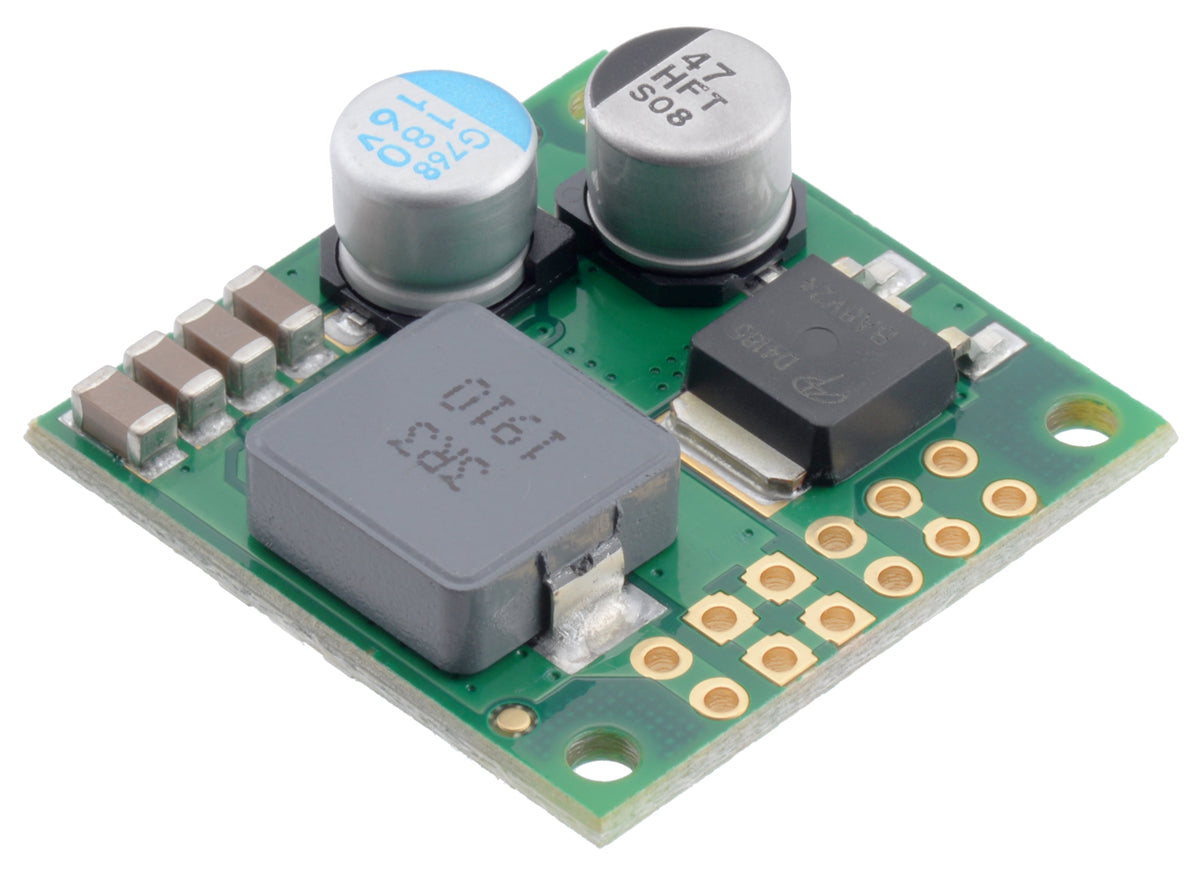

9V, 5A Step-Down Voltage Regulator D36V50F9

A synchronous buck regulator that converts inputs from about 9.9 V up to 50 V into a fixed 9 V output at up to 5 A depending on input voltage. Typical efficiency is 85–95%, and a power-save mode with ultrasonic operation keeps light-load efficiency high without audible switching noise. Integrated protection covers reverse-voltage, over- and under-voltage, over-current, short-circuit and thermal shutdown, with soft-start limiting inrush. An enable input drops the board into low-power sleep and a power-good output signals regulation status.

• Input voltage: 9.9 V to 50 V
• Output: fixed 9 V, ±4% accuracy
• Max output current: ~5 A (at 36 V input)
• Typical efficiency: 85–95%
• Switching frequency: ~500 kHz, ultrasonic power-save at light load
• Protections: reverse-voltage, over/under-voltage, over-current, short-circuit, thermal

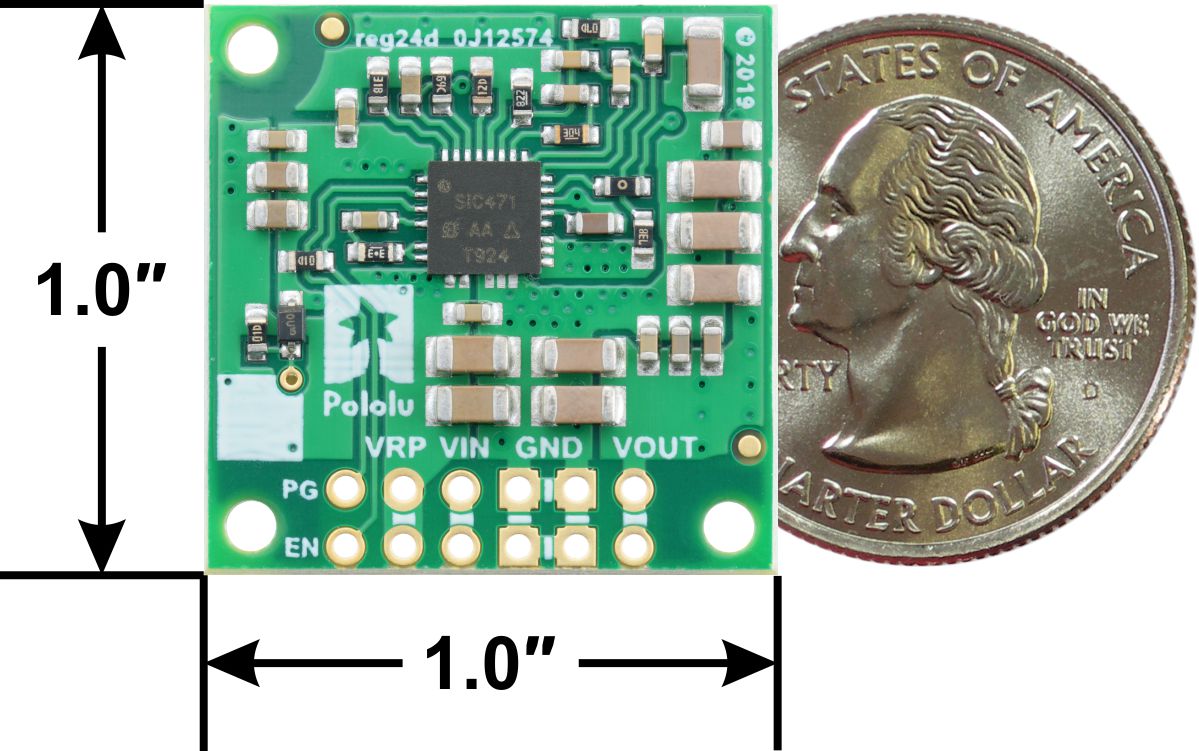

• Size: 1 × 1 × 0.375 in, 0.1 in grid
• Pololu item #4094
