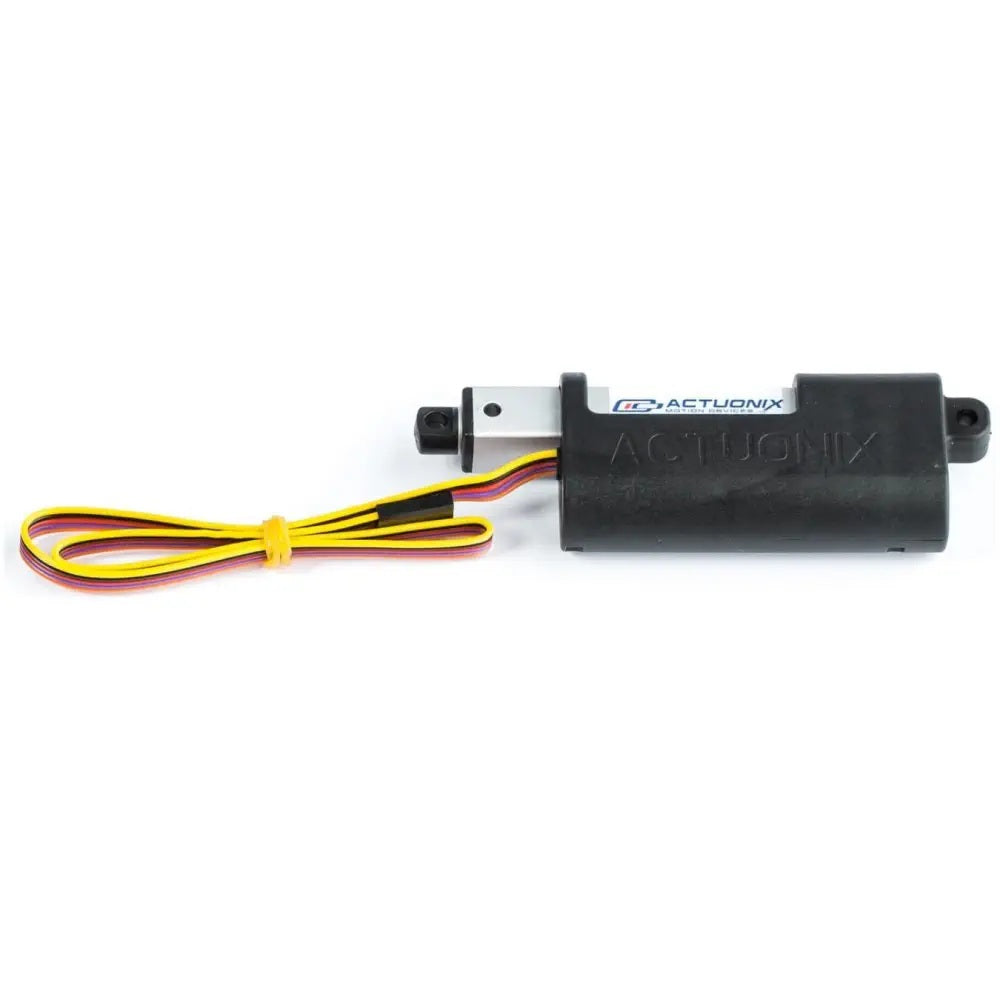

Actuonix P16-P Micro Linear Actuator with Feedback, 50mm, 256:1, 12V

The P16-P is a compact 12 V DC electric linear actuator with an integrated lead screw and a built-in potentiometer that provides analog position feedback for closed-loop control. The 256:1 gearset is the highest-force option in the range, trading travel speed for 250 N of peak force. It has no onboard controller, so it needs an external motor driver or an Actuonix control board. Typical uses are robotics, camera and antenna positioning, and industrial actuation.

• Stroke: 50 mm
• Gear ratio: 256:1
• Voltage: 12 V DC
• Peak force: 250 N at 2.5 mm/s
• No-load speed: 4.8 mm/s
• Stall current: 1000 mA at 12 V
• Feedback: analog potentiometer
• IP-54, 95 g, closed length 105.5 mm, max duty cycle 20%
