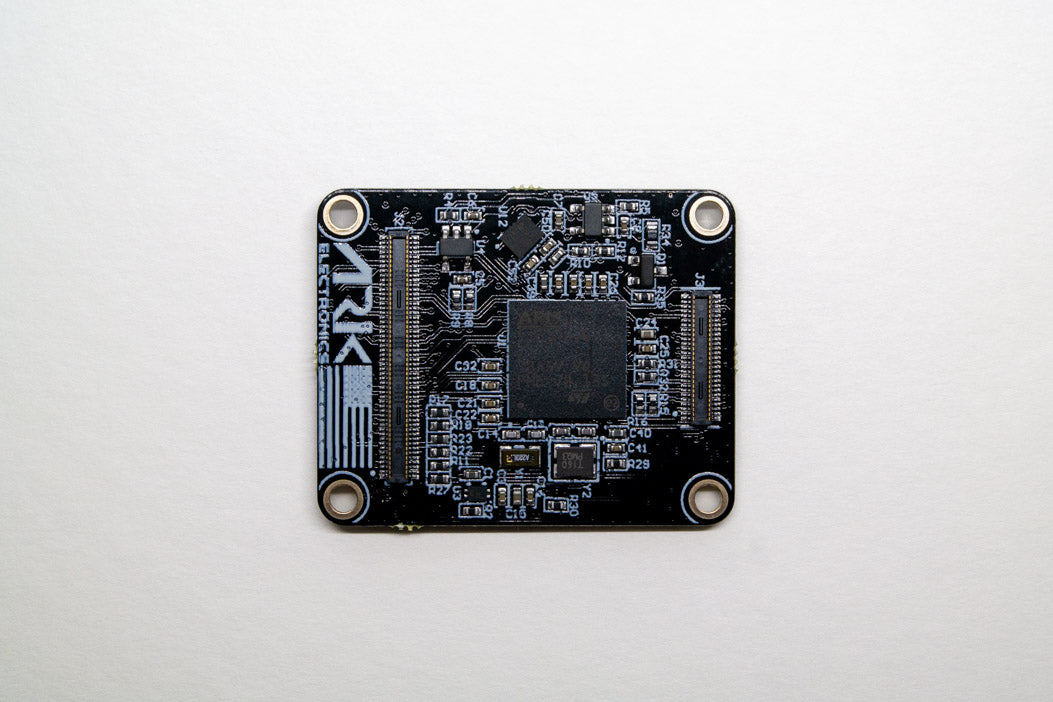

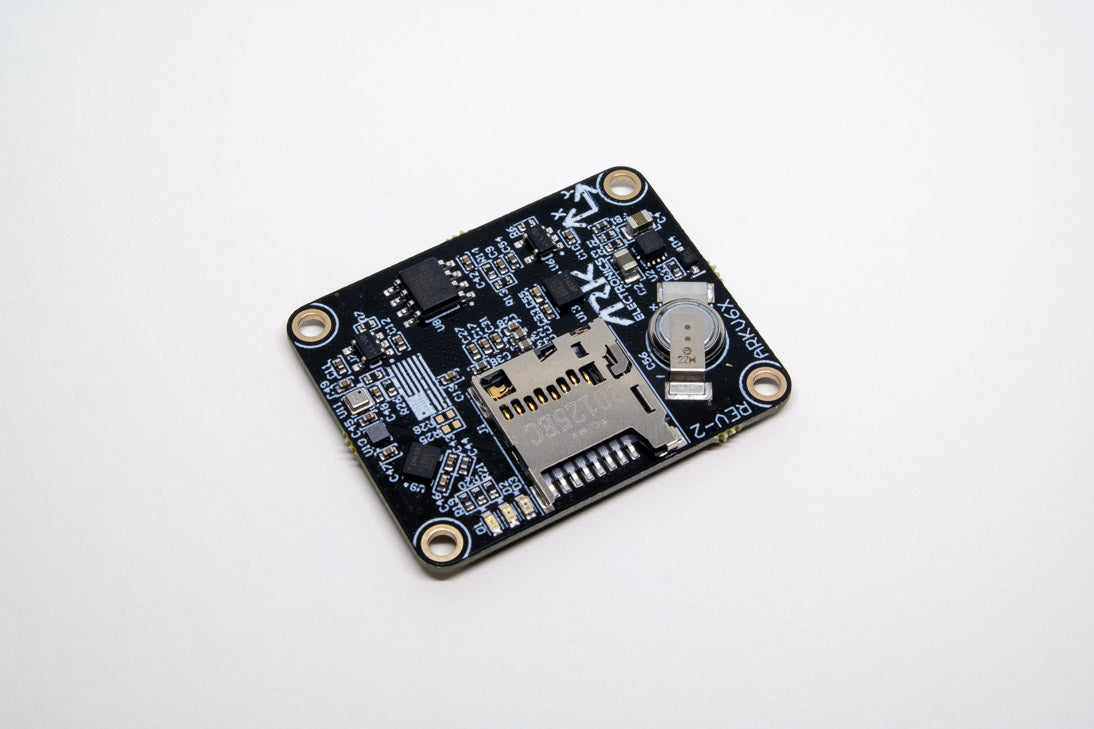

ARKV6X Flight Controller

Overview

The ARKV6X is a USA-built, NDAA-compliant flight controller module based on the FMUv6X and Pixhawk Autopilot Bus (PAB) open-source standards, with three synchronized IMUs for data averaging, voting and filtering.

Important before you order

The ARKV6X is an FMU module and has no connectors of its own. It requires a PAB-compatible carrier board to provide GPS, telemetry, CAN, PWM and USB. Order a carrier board alongside it.

Sensors

• Dual Invensense ICM-42688-P IMUs
• Invensense IIM-42652 industrial IMU
• Bosch BMP390 barometer
• Bosch BMM150 magnetometer
• FRAM
• 1W heater keeps the sensors at temperature in extreme cold

Specifications

• MCU: STM32H743IIK6, 480MHz, 2MB Flash, 1MB RAM

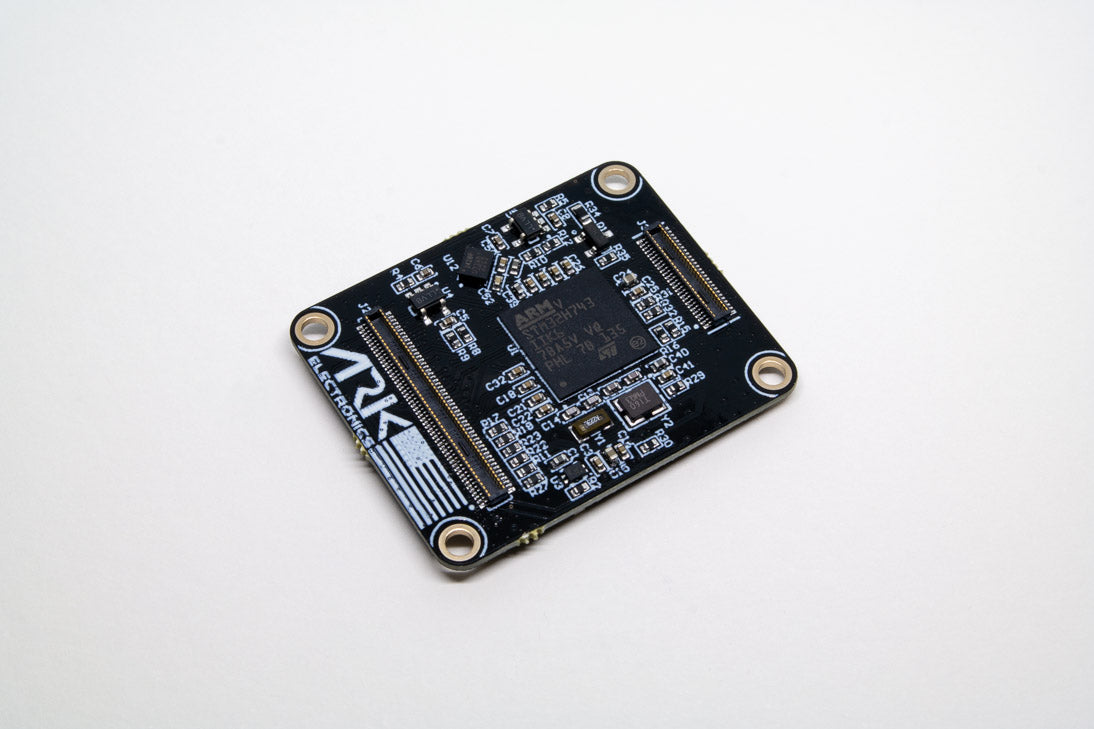

• Form factor: Pixhawk Autopilot Bus (PAB) / FMUv6X
• Input: 5V, 500mA draw (300mA system + 200mA heater)

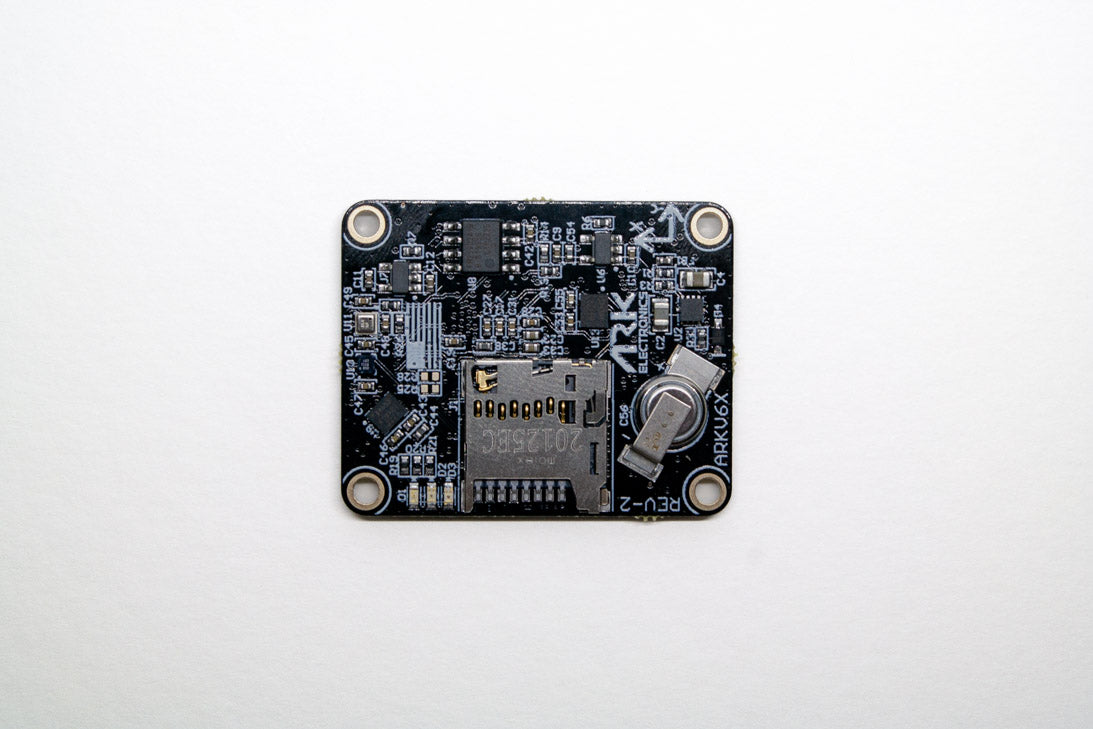

• MicroSD slot, MicroSD card included
• Dimensions: 3.6 x 2.9 x 0.5 cm
• Weight: 5 g
• Built in the USA

Firmware

Ships with PX4 Autopilot; ArduPilot can be flashed.
