MFE Fighter 2430mm VTOL

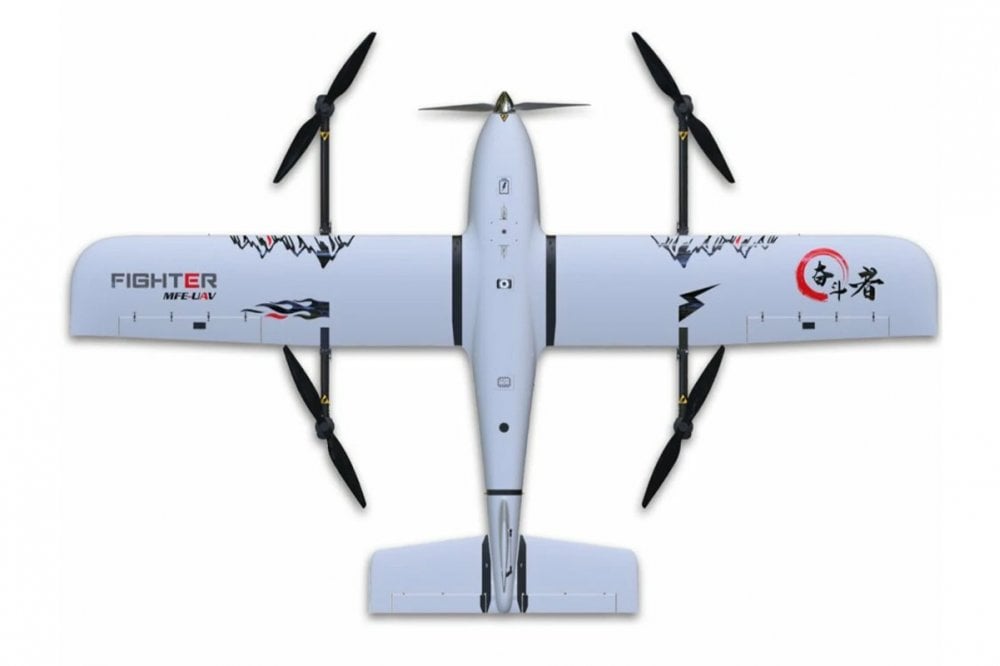

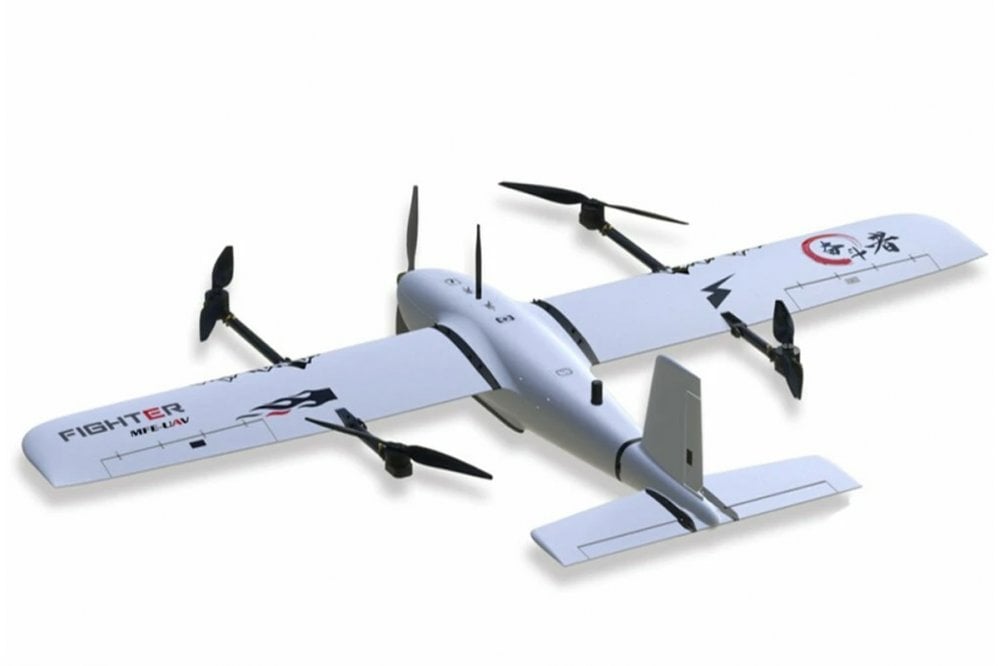

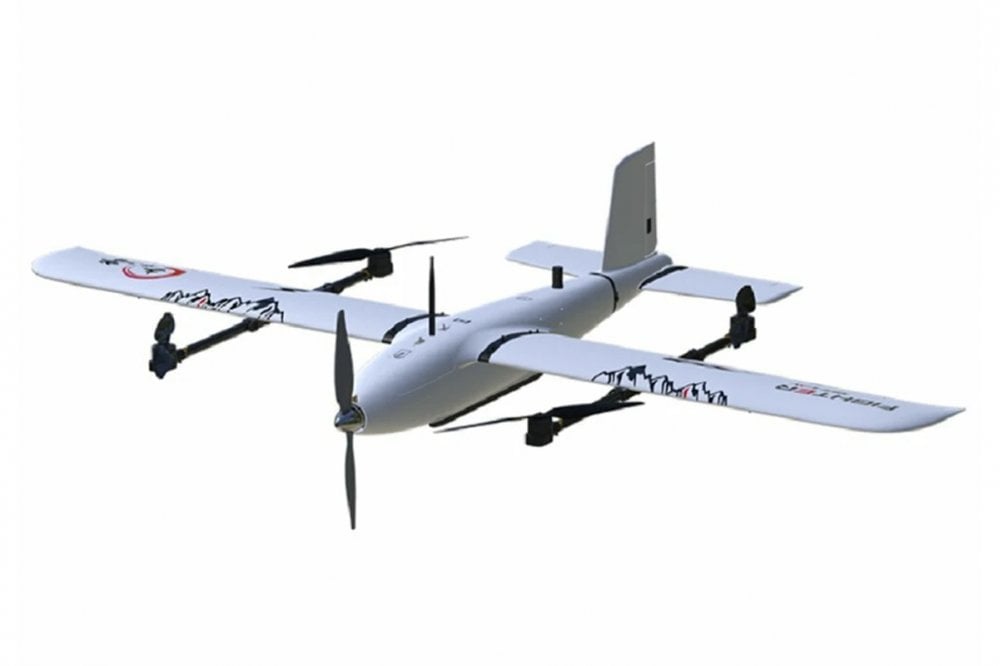

MFE Fighter is a 2430 mm fixed-wing VTOL from MakeFlyEasy for long-range mapping and inspection. Four lift motors and one cruise motor (4+1) let it take off and land vertically, then cruise efficiently on the wing.

Before you order

• Minimum order: 3 units. Each request is reviewed individually, and a single unit can still be ordered.
• Delivery: up to 10 weeks. Configuration changes or earlier delivery may be possible.
• Talk to a representative before you order: sales@anyuno.com or the chat on this page.
• Batteries are not included.

Versions

• KIT: airframe kit, without the propulsion set and electronics.
• PNP (4+1): airframe with the propulsion set and servos: 4 lift motors with 12S ESCs, 1 cruise motor with a 12S ESC, 20-inch carbon VTOL propellers and a cruise propeller, 5 metal-gear servos and a 10A UBEC.

Not included in either version: flight controller, radio and telemetry link, batteries (2 × 6S, 16,000–22,000 mAh), battery charger and mission payload. Our representative confirms the exact configuration with you before the order.

What it carries

The open flight-controller bay is compatible with Pixhawk-class autopilots running ArduPilot. The payload bay takes a full-frame mapping camera such as the Sony A7R II (42 MP) or a lightweight LiDAR of up to 1.5 kg. With ground control points, mapping results can meet 1:1000 and 1:2000 survey standards. Typical uses: topographic survey, agriculture and forestry, power-line inspection, environmental and water monitoring.

Wings, folding arms and tail detach without tools, so the aircraft packs into a single transport case.

Specifications

• Wingspan: 2430 mm
• Fuselage length: 1450 mm
• Fuselage height: 180 mm
• Wing area: 72.5 dm²
• Max take-off weight: 11.5 kg
• Max payload: 2.5 kg
• Payload bay: 280 × 160 × 110 mm
• Range: up to 150 km with a 600 g payload
• Cruise speed: 17–20 m/s
• Stall speed: 10 m/s
• Service ceiling: 4000 m
• Wind resistance: level 5
• Max battery: 12S 22,000 mAh
• Take-off and landing: VTOL
• Assembly: tool-free
• Materials: EPO, EVA, carbon fibre, PC and engineering plastics
• Transport case: 126 × 35 × 49.5 cm
