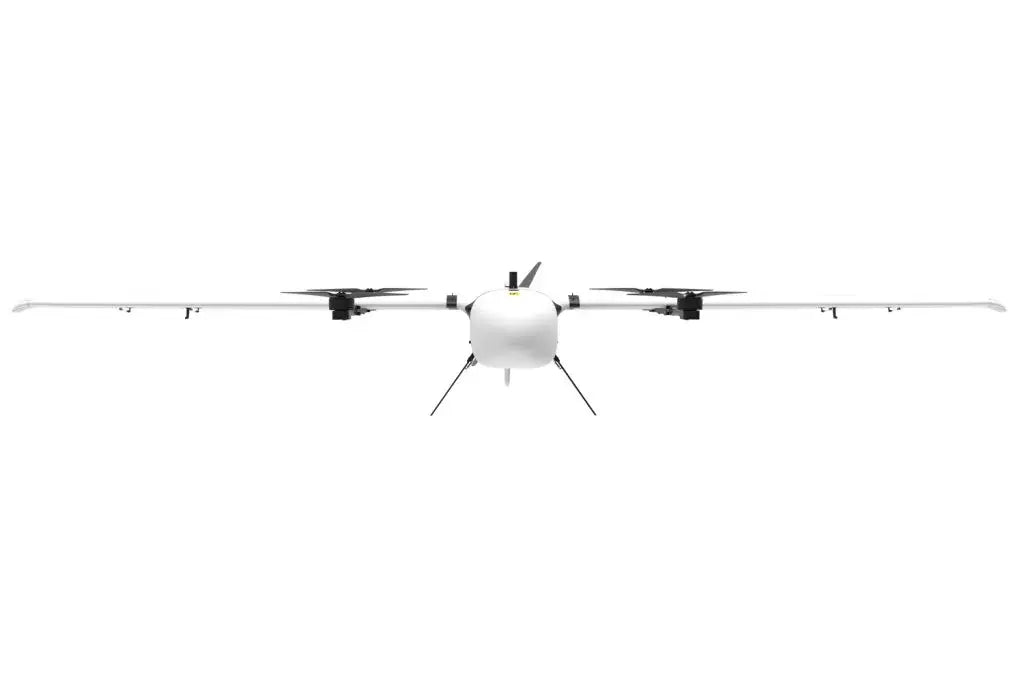

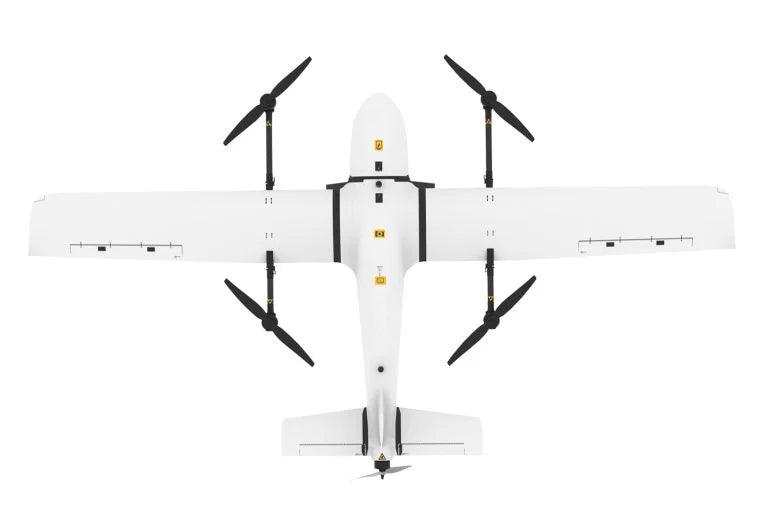

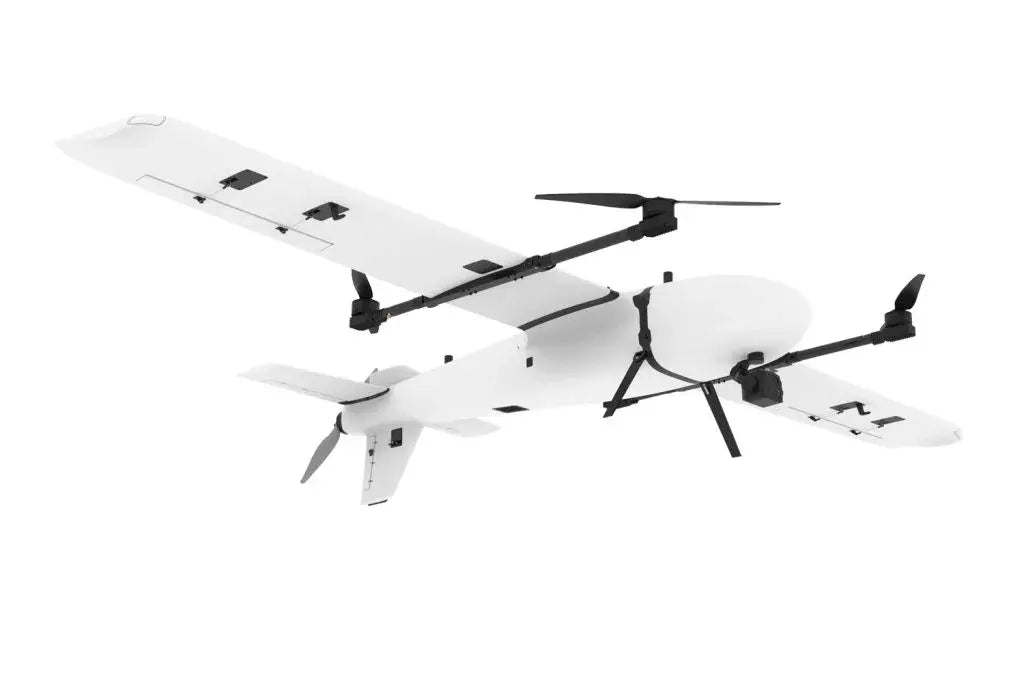

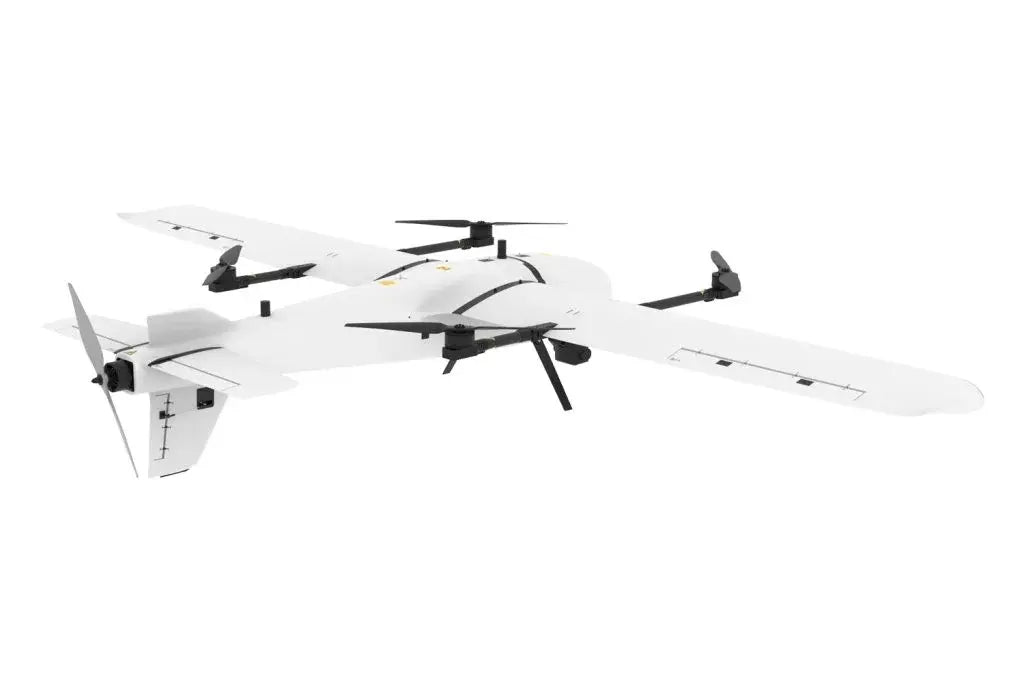

MFE Pioneer 3200mm VTOL

MFE Pioneer is a 3200 mm fixed-wing VTOL from MakeFlyEasy for heavy mapping and inspection missions. It carries up to 5 kg, has a payload bay sized for LiDAR, and flies for up to 230 minutes.

Before you order

• Minimum order: 3 units. Each request is reviewed individually, and a single unit can still be ordered.
• Delivery: up to 10 weeks. Configuration changes or earlier delivery may be possible.
• Talk to a representative before you order: sales@anyuno.com or the chat on this page.
• Batteries are not included.

PNP version

Airframe with the VTOL and cruise propulsion set and servos. Flight controller, radio and telemetry link, batteries, charger and mission payload are not included. Our representative confirms the exact configuration with you before the order.

Flight time and range

Manufacturer test results, flown with 4 × 6S 30,000 mAh semi-solid-state batteries (12S):

• 1 kg payload: 230 min, 290 km
• 3 kg payload: 210 min, 275 km
• 5 kg payload: 176 min, 242 km

Results depend on the build, payload, altitude and weather.

Specifications

• Wingspan: 3200 mm
• Fuselage length: 1680 mm
• Fuselage height: 410 mm
• Rotor motor distance: 1000 mm
• Wing area: 100 dm²
• Max take-off weight: 24.9 kg (at 500 m altitude)
• Max payload: 5 kg
• Economic airspeed: 21–22 m/s
• Max airspeed: 35 m/s
• Stall speed: 14 m/s
• Transition speed: 16 m/s
• Service ceiling: 4000 m
• Wind resistance: level 5
• Take-off and landing: VTOL
• Assembly: tool-free
• Materials: EPO, carbon fibre, aviation aluminium alloy and engineering plastics
