Orange Pi
SKU:
Orange Pi 4
Orange Pi 4
In stock
Special order · ships in 3-4 weeks
Couldn't load pickup availability
⚠️ מוצר משדר — מכירה בכפוף לאישור רגולטורי
המוצר כולל רכיב משדר. בישראל, ייבוא והפעלה של ציוד משדר כפופים לאישור התאמה מטעם משרד התקשורת, ומכירת המוצר מותנית בהצגת אישור תדרים בתוקף — אישור מדור פריזמה (משרד הביטחון) או אישור משרד הביטחון לתדרים המשדרים הרלוונטיים. ANYUNO תספק מוצר זה אך ורק כנגד אישור כאמור. לבירור: sales@anyuno.com
This product contains a radio transmitter. In Israel, import and operation of transmitting equipment require type approval from the Ministry of Communications, and sale is conditional on a valid frequency authorisation — a Prisma Department (Israeli Ministry of Defense) permit, or Ministry of Defense approval for the relevant transmit frequencies. ANYUNO will supply this product only against such approval. Contact: sales@anyuno.com

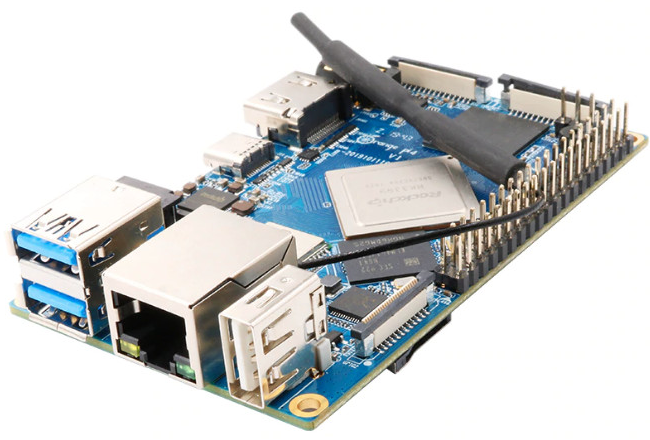

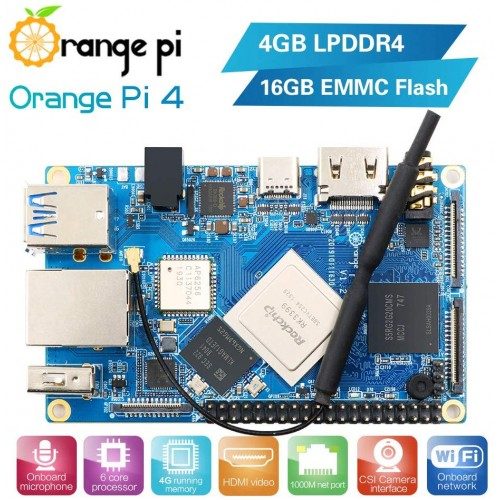

Orange Pi 4 is an open-source single-board computer. It can run Android 8.1, Ubuntu 16.04, Ubuntu 18.04, and Debian 9 images. It uses the Rockchip RK3399, and is equipped with Dual 4GB LPDDR4, with an optional 16GB eMMC flash
What can I do with Orange Pi 4?
Build…
- A computer
- A wireless server
- Games
- Music and sounds
- HD video
- A speaker
- Android
- Scratch
- Pretty much anything else, because Orange Pi 4 is open source
Who’s it for?
Orange Pi 4 is for anyone who wants to start creating with technology – not just consuming it. It’s a simple, fun, useful tool that you can use to start taking control of the world around you.

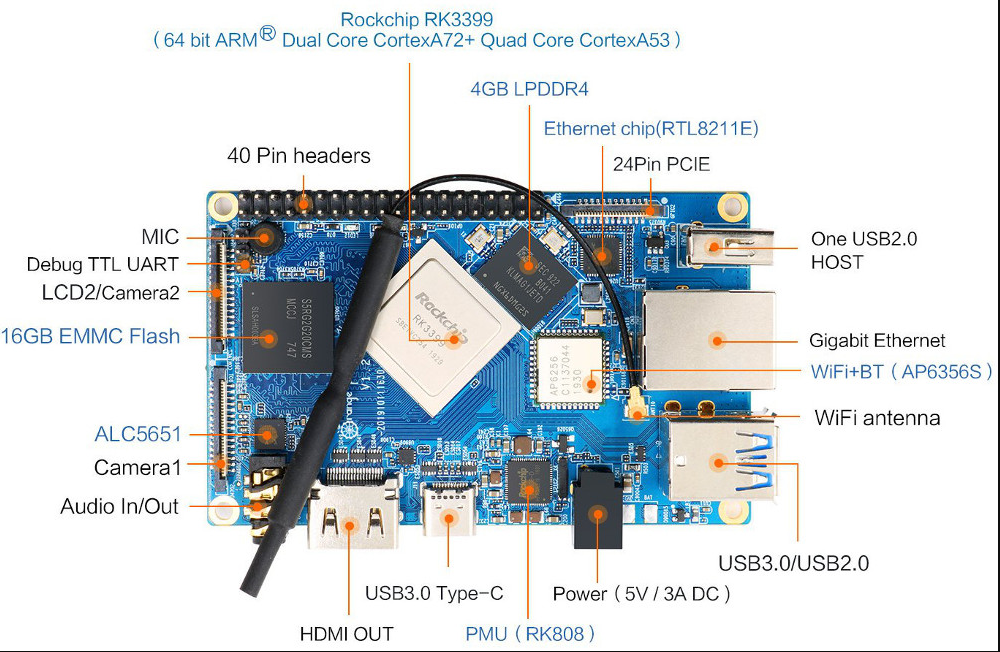

Hardware Specification |
||
| CPU | Rockchip RK3399 (28nm HKMG process) 6-core ARM® 64-bit processor ,main frequency speeds up to 2.0GHz Based on the large and small size core architecture of big.LITTLE: Dual-core Cortex-A72 (large core) + Quad-core Cortex-A53 (small core) |
|
| GPU | Mali-T864 GPU Supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1,OpenCL, DX11, support for AFBC |
|
| PMU | RK808 PMU | |
| Memory+Onboard Storage | Dual 4GB LPDDR4 + 16GB EMMC Flash Dual 4GB LPDDR4 +EMMC Flash(Default Empty) |
|
| On-board WIFI+Bluetooth | AP6256, IEEE 802.11 a/b/g/n/ac, BT5.0 | |
| Network | 10/100/1000Mbps Ethernet( Realtek RTL8211E ) | |
| Audio | Output: 3.5mm Jack and HDMI2.0a Input: MIC |
|
| Video Outputs | 1 x HDMI 2.0 ( Type-A ), Supports 4K@60fps output 1 x DP 1.2 (Display Port) , Supports 4K@60fps output Supports Dual MIPI-DSI （4 lines per channel） |
|
| Camera | 2 x MIPI-CSI Camera connector (MIPI_RX0、MIPI_TX1/RX1) | |
| USB | 2 x USB2.0 HOST，1x USB3.0 HOST, 1 x USB3.0 Type-C | |
| RTC | Support RTC, on-board battery backup interface | |
| Debug UART | 3 pins Debug UART | |
| GPIO | GPIO1 40 pins（1 x I2S、2 x I2C、1 x SPI/UART、8 x GPIO） GPIO2 24pin PCIE port |
|

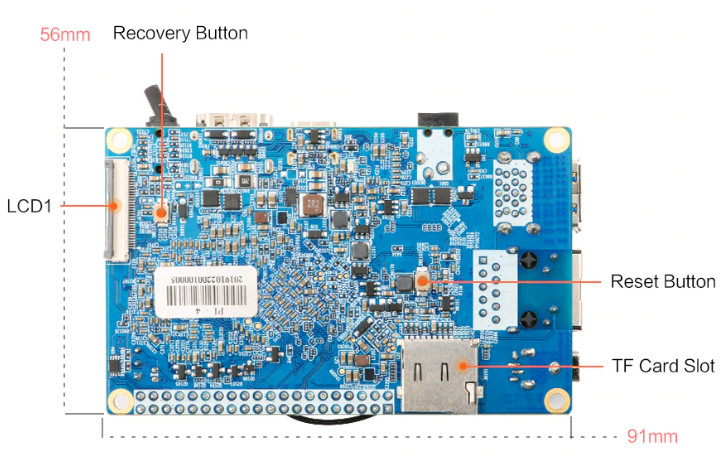

| Key | Upgrade Key & Reset Key | |
| Power Source | DC 5V/3A TYPE-C 5V/3A | |
| LED | Power led & Status led | |
| OS Support | Android 8.1 Ubuntu 16.04 Ubuntu 18.04 Debian 9 |
|
| PCB | 8 Layer | |
| Dimension | 91mm*55.7mm | |
