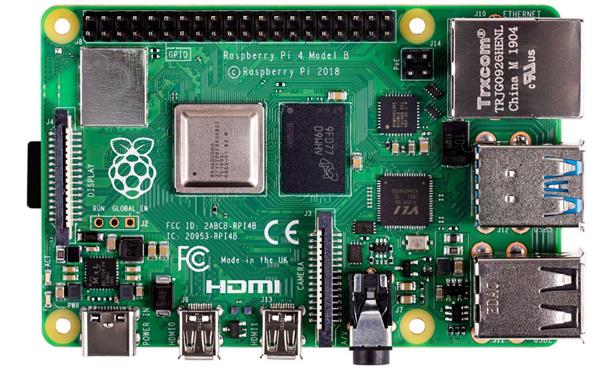

It offers an major increase in processor speed, multimedia performance, memory and connectivity compared to the previous generation of the Raspberry Pi 3 Model B +, while maintaining compatibility with earlier versions and similar power consumption. For the end user, the Raspberry Pi 4 Model B offers desktop performance comparable to that of entry-level x86 PC systems.
Key features of this product include a high-performance64-bit quad-core processor, support for dual display atresolutions up to 4Kthrough apair of micro-HDMI ports, hardware videodecoding up to 4Kp60, up to4 GB of RAM, two ports.2.4 / 5.0 GHz wireless network,Bluetooth 5.0capabilities,Gigabit Ethernet, USB 3.0 and POE (via a separate POE HAT add-on).
The dual-band wireless LAN and Bluetooth have a modular compliance certification, which allows the card to be designed into end products with greatly reduced compliance testing, improving cost and time-to-market.
Processor:
Broadcom BCM2711, quad-core Cortex-A72 (ARM v8)
64-bit SoC @ 1.5GHz
Memory:
1GB, 2GB or 4GB LPDDR4
(depending on model)
Connectivity:
2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless
LAN, Bluetooth 5.0, BLE
Gigabit Ethernet
2 × USB 3.0 ports
2 × USB 2.0 ports.
GPIO:
Standard 40-pin GPIO header
(fully backwards-compatible with previous boards)
Video & sound:
2 × micro HDMI ports (up to 4Kp60 supported)
2-lane MIPI DSI display port
2-lane MIPI CSI camera port
4-pole stereo audio and composite video port
Multimedia:
H.265 (4Kp60 decode);
H.264 (1080p60 decode, 1080p30 encode);
OpenGL ES, 3.0 graphics
SD card support:
Micro SD card slot for loading operating system
and data storage
Input power:
5V DC via USB-C connector (minimum 3A1)
5V DC via GPIO header (minimum 3A1)
Power over Ethernet (PoE)–enabled
(requires separate PoE HAT)

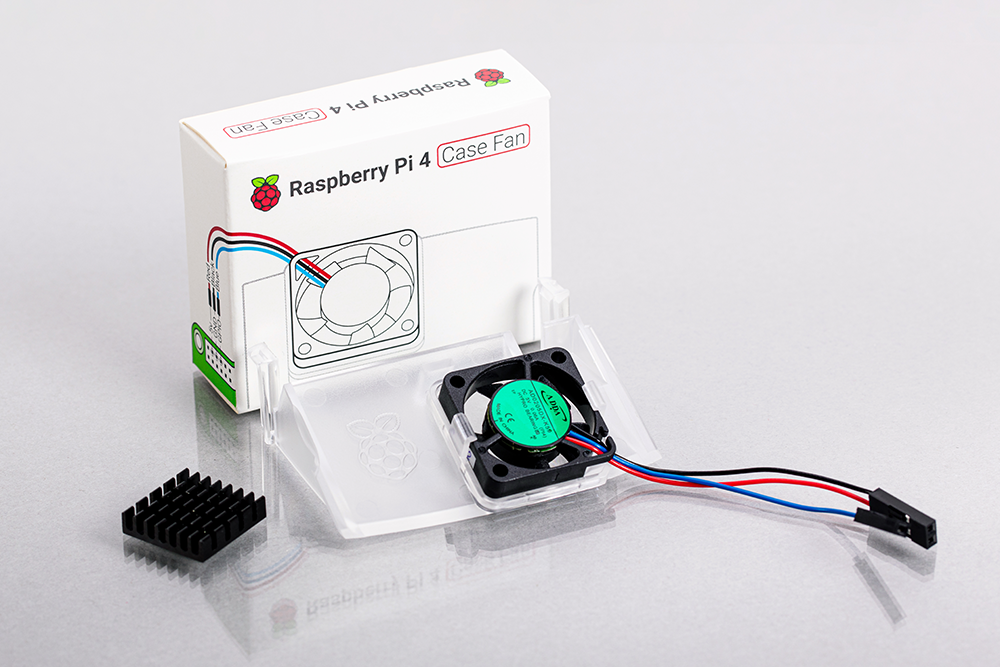

The kit includes: Raspberry Pi 4 MODEL B, Official Case for Raspberry Pi 4, Official Cooling fan for RPI 4 case, Cable Micro-HDMI to HDMI (type A) 1M for PI4, SanDisk 32GB Ultra® microSD, Official Power Supply for Raspberry Pi 4
