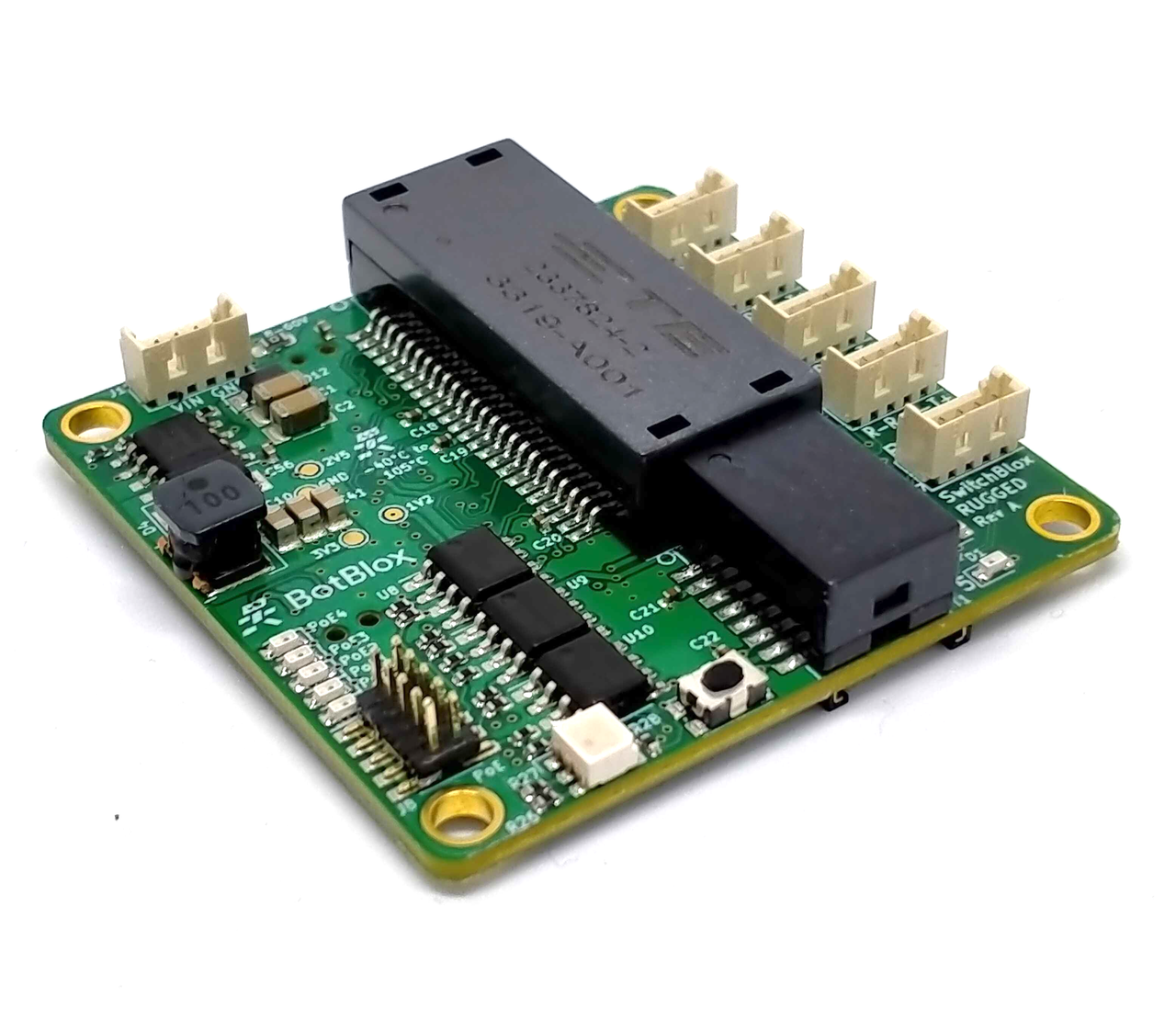

SwitchBlox Rugged - -50°C to +110°C Ethernet Switch

SwitchBlox Rugged is an ultra-compact 5-port unmanaged Layer 2 Ethernet switch built for harsh environments — UAVs, robotics, defence and space payloads. It uses an automotive-rated switch IC and military-grade passives on a 2 mm PCB substrate, and runs on a wide 5–60 V reverse-protected input so it can be fed directly from a vehicle or battery bus. Two units stack via an RGMII header to form a 10-port switch.

• 5 × 10/100 Mbps ports (10 when stacked)
• Input: 5–60 V, reverse-protected, 65 V tolerant
• Power: 600 mW idle, 1200 mW max
• Operating temperature: −50 °C to +110 °C
• Size: 44.5 × 44.5 × 11.17 mm
• Molex PicoBlade connectors
• 20 kRad(Si) TID radiation tolerance

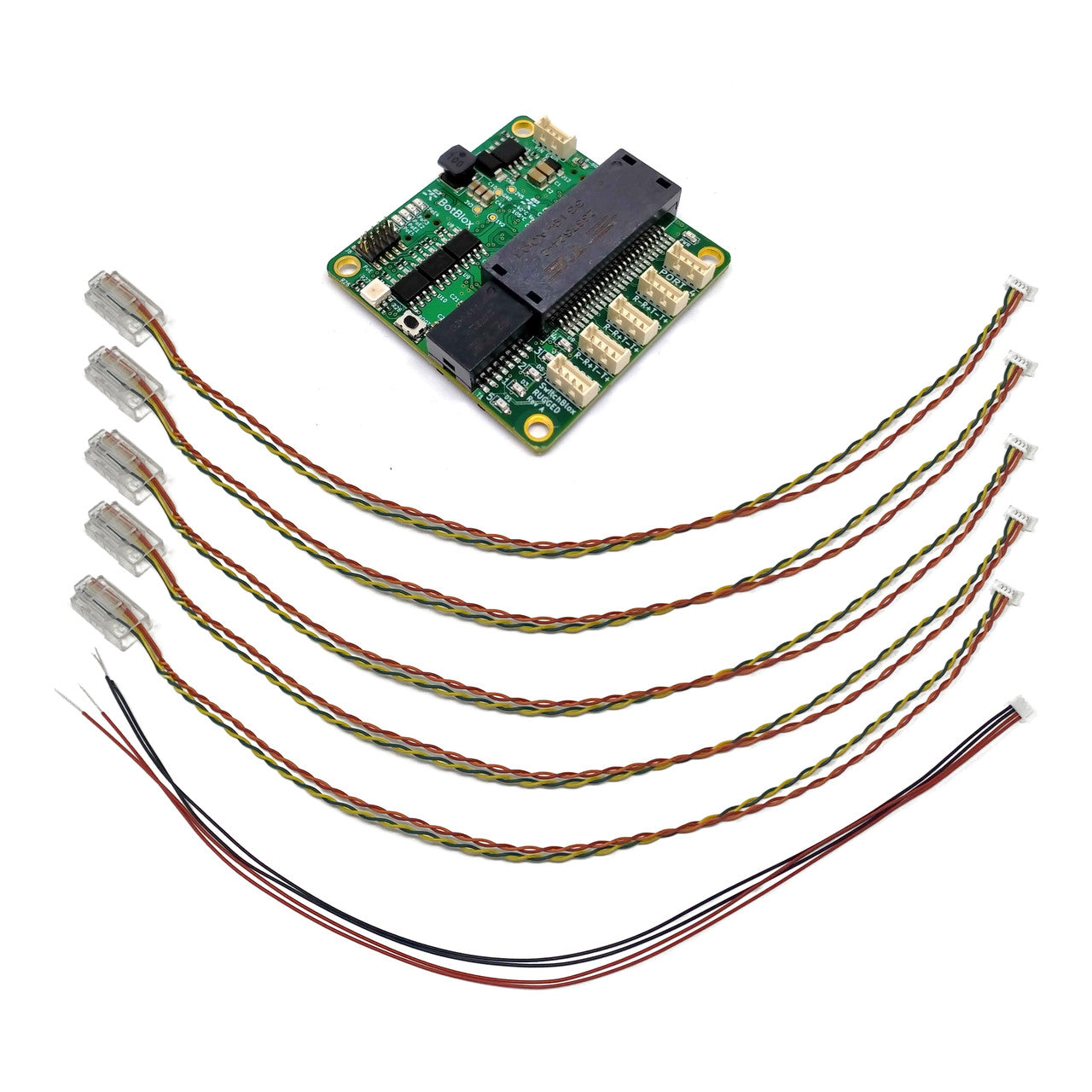

• Ships with 5 data cables and 1 power cable
